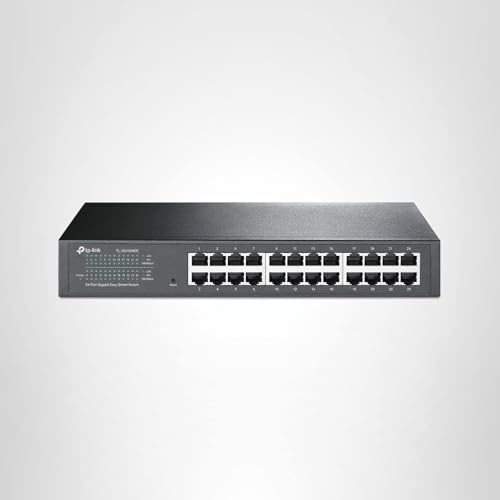

Name: TP-Link TL-SG1024DE Black
Brand: TP-Link
SKU: B00CUG8ESM
Price: 99.99 USD
Availability: InStock
Rating: 4.7 (1338 reviews)

Expert Review Analysis

The TP‑Link TL‑SG1024DE is a 24‑port Gigabit Easy Smart Managed switch offering basic Layer‑2 features such as VLAN, QoS and IGMP snooping in a fanless, 1U rack‑mountable chassis. It delivers 48 Gbps switching capacity, energy‑saving design and plug‑and‑play simplicity aimed at small‑to‑medium business networks.

✓ Best for: Small‑to‑medium businesses, home labs, and office environments that need basic managed Gigabit switching with VLAN and QoS, require a quiet 1U rack‑mount solution, and value energy‑saving operation.✗ Not ideal for: Deployments that rely on Power over Ethernet, high‑density enterprise networks demanding advanced L3 routing or extensive monitoring, and scenarios where sustained heavy traffic could cause heat issues in a fanless chassis.

Pros

✓Fanless design provides completely silent operation, ideal for noise‑sensitive environments.
✓Energy‑efficient architecture reduces power consumption by up to 25‑40%, lowering operating costs.
✓

Price History

Current

$99.99

Average

$93.42

Lowest

$75.99

Highest

$115.99

Price trend (90d):-8.3%

Best Seller Rank History

Now#116Best#13Worst#119 -70

Lower = better sales rank

Specifications

Accessories

Package ContentsSwitch, power cord, installation guide, resource CD, rackmount kit, rubber feet

Design

ColorBlack

Height1.7 in (≈43.18 mm) mm

Width7.1 in (≈180.34 mm) mm

Depth11.6 in (≈294.64 mm) mm

Weight3.7475 lbs (≈1700 g) g

Features

QoSPort-based, 802.1p, DSCP priority, 4 queues, rate limit, storm control

L2 FeaturesIGMP Snooping (V1/V2/V3), static link aggregation, port mirroring, cable diagnostics, loop prevention

VLAN SupportUp to 32 VLANs (4K VLAN IDs), MTU/Port/Tag VLAN

General

BrandTP-Link

ModelTL-SG1024DE

Release Date2017-12-05

WarrantyLimited Lifetime

CertificationsFCC, CE, RoHS

Network

Supported Media10BASE-T (Cat3/4/5 ≤100m), 100BASE-TX/1000BASE-T (Cat5/5e+ ≤100m)

Performance

Switching Capacity48 Gbps Gbps

Packet Forwarding Rate35.7 Mpps Mpps

MAC Address Table Size8K

Packet Buffer Memory4.1 Mbit Mbit

Jumbo Frame Size10 KB KB

Ports

Ethernet Ports24 × 10/100/1000 Mbps RJ45 (Auto Negotiation/Auto MDI/MDIX)

Power

Input Voltage100-240 V AC

Frequency50/60 Hz

Power Consumption13.1-14.6 W

Energy SavingUp to 25% power reduction

Heat Dissipation48.39 BTU/h BTU/h

Software

System RequirementsMicrosoft Windows

Thermal

Max Heat Dissipation48.39 BTU/h

Energy

Green Technology Power ReductionUp to 25 % energy savings

Dimensions & Weight

Height1.7 inches

Width7.1 inches

Depth11.6 inches

Weight3.7475 pounds
