Vonets VAP11AC — Review & Specs | Pricepect | Pricepect

Home Network BridgesVonets VAP11AC

Vonets VAP11AC — image 1

Vonets

Vonets VAP11AC

Expert Review Analysis

The Vonets VAP11AC is a compact industrial‑grade dual‑band wireless bridge, repeater and router that supports simultaneous 2.4 GHz (300 Mbps) and 5 GHz (900 Mbps) operation. It features TAFC frequency‑stabilization, wide‑range DC power input with over‑voltage and reverse‑polarity protection, and an intelligent cooling fan for continuous use.

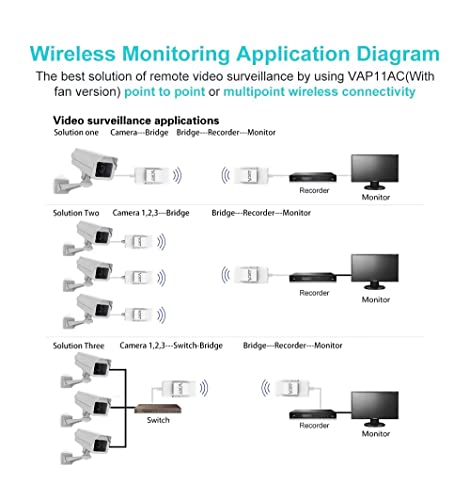

✓ Best for: Technicians and installers who need a reliable, long‑range Wi‑Fi bridge (up to 300 m) for industrial or outdoor‑lite scenarios such as video‑surveillance camera linking, remote sensor networks, or wired‑to‑wireless conversion in low‑power environments.✗ Not ideal for: High‑traffic home or office networks that require Gigabit Ethernet backhaul, extensive QoS or cloud management, or where the compact chassis may struggle with heat during prolonged heavy use.

Pros

✓Dual-band operation with simultaneous 2.4 GHz and 5 GHz support delivering up to 300 Mbps + 900 Mbps for high‑throughput bridging.
✓TAFC digital‑analog temperature compensation technology stabilizes signal strength and reduces drop‑outs in varying environmental conditions.

Price History

Current

$45.28

Average

$45.27

Lowest

$43.02

Highest

$45.28

Price trend (90d):0.0%

Best Seller Rank History

Now#1,393Best#821Worst#1,984 +591

Lower = better sales rank

Rating Trend

Rating3.5/ 5Reviews14

Specifications

Accessories

Power Adapter Included12 V / 1 A power adapter

Ethernet Cable Length30 cm mm

Design

Dimensions9.4 x 4.5 x 1.5 cm

Weight72 g g

Features

Cooling FanIntelligent auto‑start/stop cooling fan

Fan Auto-Start Time5‑10 minutes of operation

TAFC TechnologyDigital‑analog temperature compensation frequency stabilization (TAFC)

Supported ModesBridge, Repeater, Router, IP layer pass‑through, MAC layer pass‑through

Industrial GradeIndustrial‑grade design

General

BrandVonets

ManufacturerShenzhen HouTian Network Communication Technology Co., Ltd.

ModelVAP11AC

Warranty1 year

Network

Wireless Standards802.11ac, 802.11a, 802.11n, 802.11g, 802.11b

Frequency Bands2.4 GHz, 5 GHz

2.4 GHz Data Rate300 Mbps Mbps

5 GHz Data Rate900 Mbps Mbps

Total WiFi Data Rate1200 Mbps Mbps

Performance

2.4 GHz Transmit Power15 dBm dBm

5 GHz Transmit Power23 dBm dBm

Transmission DistanceUp to 300 m (5 GHz) m

Ports

Ethernet Port Count1 RJ45 port

Power Input Port TypeDC barrel (female) and USB‑A (male)

Power

Input Voltage5 V to 24 V DC

Input Current1 A (typical) A

Over-voltage ProtectionTwo-stage 29 V over‑voltage protection

Reverse Polarity ProtectionReverse polarity protection

Stability

TAFC TechnologyDigital‑analog temperature compensation frequency stabilization for consistent signal quality

Power Protection

Over‑Voltage ProtectionTwo‑stage protection up to 29 V prevents damage from voltage spikes

Reverse Polarity ProtectionPrevents device failure if power polarity is connected incorrectly

Research Sources

sunsky-online.com

Similar Products

VONETS VAP11G-300 WiFi Bridge 2.4GHz WiFi to Ethernet Convert/WiFi Repeater/Point to Point with RJ45 Male DC/USB Powered for PLC IP Camera Printer Medical Devices Network Devices

VONETS VAP11G-300 WiFi Bridge 2.4GHz WiFi to Ethernet Convert/WiFi Repeater/Point to Point with RJ45 Male DC/USB Powered for PLC IP Camera Printer Medical Devices Network Devices

Vonets

Vonets WiFi Extender Release AC1200 2.4GHz/5GHz Dual Band WiFi Bridge/WiFi to Ethernet/Broader Coverage Than Ever with 1 RJ45 (10/100Mbps) USB/DC Powered for DVR/IP Camera/WiFi Repeater with Fan

Vonets WiFi Extender Release AC1200 2.4GHz/5GHz Dual Band WiFi Bridge/WiFi to Ethernet/Broader Coverage Than Ever with 1 RJ45 (10/100Mbps) USB/DC Powered for DVR/IP Camera/WiFi Repeater with Fan

Vonets

VONETS VAP11S Industrial High Power 2.4GHz WiFi Bridge/Repeater/Mini Router/ Ethernet to WiFi Hotspot Extender 300Mbps with 2 RJ45 Ports/Antennas USB/DC Powered for DVR Monitor Network Devices

VONETS VAP11S Industrial High Power 2.4GHz WiFi Bridge/Repeater/Mini Router/ Ethernet to WiFi Hotspot Extender 300Mbps with 2 RJ45 Ports/Antennas USB/DC Powered for DVR Monitor Network Devices

Vonets

【Upgraded Version】 VONETS VAP11G-500S Industrial High-Power 2.4GHz WiFi Bridge/Wireless Router/Ethernet WiFi to Ethernet Adapter for Industrial Application, PLC, Printer, Medical, Network Devices

【Upgraded Version】 VONETS VAP11G-500S Industrial High-Power 2.4GHz WiFi Bridge/Wireless Router/Ethernet WiFi to Ethernet Adapter for Industrial Application, PLC, Printer, Medical, Network Devices

Vonets

VONETS VAP11S-232 300Mbps WiFi to Ethernet Adapter 2.4G WiFi Bridge/Repeater/Mini Router/ RJ45 to RS232 Serial Server with 2 RJ45 Ports/Antennas USB/DC Powered for DVR Monitor Network Devices

VONETS VAP11S-232 300Mbps WiFi to Ethernet Adapter 2.4G WiFi Bridge/Repeater/Mini Router/ RJ45 to RS232 Serial Server with 2 RJ45 Ports/Antennas USB/DC Powered for DVR Monitor Network Devices

Vonets

AdaLov 3PCS Wireless Bridge Kit, Gigabit Point to 2 Points Outdoor WiFi Bridges for 3Km Long Range Network Expansion, 5.8G High Speed WiFi to Ethernet CPE with 1000Mbps LAN Port for Garage, Barn, Farm

AdaLov 3PCS Wireless Bridge Kit, Gigabit Point to 2 Points Outdoor WiFi Bridges for 3Km Long Range Network Expansion, 5.8G High Speed WiFi to Ethernet CPE with 1000Mbps LAN Port for Garage, Barn, Farm

AdaLov

VONETS VAP11S-5G Industrial 5GHz WiFi Bridge Repeater with Ethernet Splitter, WiFi RJ45 1 Male to 2 Female LAN Cat5 Ethernet Cable Splitter Exclusive WiFi Bridge with Fan

VONETS VAP11S-5G Industrial 5GHz WiFi Bridge Repeater with Ethernet Splitter, WiFi RJ45 1 Male to 2 Female LAN Cat5 Ethernet Cable Splitter Exclusive WiFi Bridge with Fan

Vonets

VONETS Industrial Dual-Band WiFi to Ethernet Adapter Wireless Bridge LAN Port 2 UART Ethernet WiFi Adapter/TTL to RS232/485/422/Network/UDP/TCP Transmission 2.4G/5G WiFi Bridge VAP11S-D232

VONETS Industrial Dual-Band WiFi to Ethernet Adapter Wireless Bridge LAN Port 2 UART Ethernet WiFi Adapter/TTL to RS232/485/422/Network/UDP/TCP Transmission 2.4G/5G WiFi Bridge VAP11S-D232

Vonets

VONETS Industrial Mini 2.4GHz WiFi Bridge/Repeater/Hotspot Extender/WiFi to Wired/AP Signal Booster with 1 RJ45 Male (10/100Mbps) DC/USB Powered for DVR PLC Network Printer VAP11G-300(Two Units)

VONETS Industrial Mini 2.4GHz WiFi Bridge/Repeater/Hotspot Extender/WiFi to Wired/AP Signal Booster with 1 RJ45 Male (10/100Mbps) DC/USB Powered for DVR PLC Network Printer VAP11G-300(Two Units)

Vonets

1200Mbps Dual Band WiFi to Ether...

Vonets 1800Mbps WiFi to Ethernet...

2026 WiFi Extender, New Gen Wi-F...

Solar WiFi Extender Outdoor, 15W...

WiFi 6 Extender, AX1900 Dual Ban...

Featured in Comparisons

Best 5 GHz Network Bridges

Best 5 GHz Network Bridges

roundup

Best Budget Network Bridges Under $50

Best Budget Network Bridges Under $50

roundup

Ubiquiti PowerBeam ac vs Vonets VAP11AC

User Reviews

Please sign in to leave a review

Sort by:

No reviews yet. Be the first to review!

3.5

(14 reviews)

$45.28

Track Price on BigBangPrice

Get notified when the price drops. Track this product on BigBangPrice, our price tracking partner.

VAP11ACDual band Bridge+Repeater with adapter9.4*4.5*1.5 cm 1year

Network Bridges

✓

Wide input voltage range (5 V‑24 V) with two‑stage 29 V over‑voltage and reverse polarity protection enhances reliability in industrial installations.

✓Built‑in high‑power front‑end modules (FEMs) provide strong transmit power (up to 23 dBm) for long‑range links up to 300 m on 5 GHz.

✓Compact industrial‑grade housing with an intelligent auto‑start/stop cooling fan enables continuous operation without overheating.

Cons

✗2.4 GHz transmit power limited to ~15 dBm, which may reduce coverage in congested Wi‑Fi environments compared to the stronger 5 GHz output.
✗Device only includes 10/100 Mbps Ethernet ports, lacking Gigabit Ethernet which can bottleneck the advertised 900 Mbps wireless link.
✗Miniature form factor (under 10 cm) may restrict heat dissipation on the non‑fan version, potentially affecting performance under sustained load.
✗No documented professional or consumer reviews, making real‑world reliability and firmware stability difficult to verify.
✗Absence of advanced management features such as cloud monitoring or detailed QoS controls limits suitability for complex network deployments.

How It Compares

vs. Vonets VAP11S (2.4 GHz only)

Advantages

✓Adds dual‑band 5 GHz capability and higher combined throughput (300 Mbps + 900 Mbps) versus the VAP11S’s single‑band design.

Disadvantages

✗VAP11S lacks 5 GHz support, resulting in lower maximum data rates and shorter effective range for high‑frequency links.

Choose VAP11AC when dual‑band performance and longer 5 GHz range are required; VAP11S may suffice for simple 2.4 GHz point‑to‑point bridges.

Thermal Management

Intelligent Cooling FanAuto‑start/stop fan activates only when temperature exceeds threshold

RF Hardware

High‑Power FEMsBuilt‑in front‑end modules deliver up to 23 dBm transmit power on 5 GHz

Dimensions & Weight

Height0.59 inches

Width1.77 inches

Depth3.7 inches

Weight0.2645547144 Pounds
