Name: BTF-LIGHTING WB5
Brand: Btf-lighting
SKU: B08L9GWJK1
Price: 27.99 USD
Availability: InStock
Rating: 4.3 (857 reviews)

Expert Review Analysis

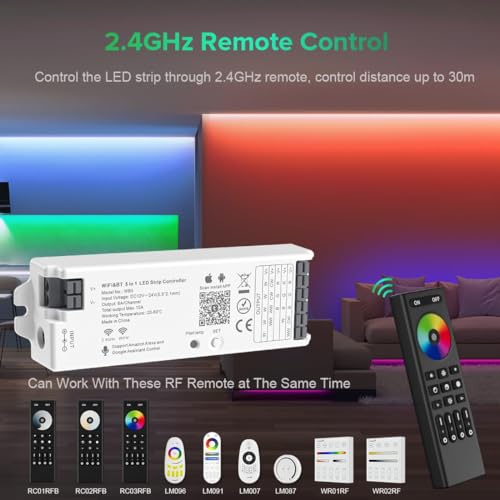

The BTF‑Lighting WB5 is a 5‑in‑1 PWM LED controller that supports monochrome, CCT, RGB, RGBW and RGB+CCT strips, offering Wi‑Fi (2.4 GHz) and RF control, voice integration with Alexa/Google Home, and advanced features such as music sync, timers and group scenes.

✓ Best for: DIY enthusiasts, professional installers, and smart‑home hobbyists who need one controller for mixed monochrome, CCT, RGB, RGBW and RGB+CCT LED strips; ideal for large indoor installations up to 360 W, voice‑controlled scenes, and music‑reactive party lighting.✗ Not ideal for: Beginners who are uncomfortable with manual mode switching, outdoor installations lacking an IP‑rated enclosure, and setups that require 5 GHz Wi‑Fi or built‑in battery backup.

Pros

✓Highly versatile 5‑in‑1 compatibility reduces the need for multiple controllers across different LED strip types.
✓Strong power handling up to 360 W at 24 V enables large‑scale LED installations without additional amplifiers.
✓

Price History

Current

$27.99

Average

$27.34

Lowest

$22.39

Highest

$28.99

Price trend (90d):0.0%

Best Seller Rank History

Now#136Best#134Worst#190 +54

Lower = better sales rank

Rating Trend

Rating4.3/ 5Reviews857+253 reviews

Specifications

Connectivity

WiFi StandardIEEE 802.11 b/g/n 2.4GHz

RF Frequency2.4 GHz

Control Distance30 m m

Controls

Control Methods2.4GHz RF Remote, Tuya Smart/Smart Life App, Alexa/Google Home voice

Design

Height23 mm mm

Width38 mm mm

Length125 mm mm

Weight68 g g

Features

Features TypeTimer/schedule, music sync, group control, scene modes, delay on/off, Bluetooth‑RF conversion, multi‑zone control, biorhythm, tap‑to‑run, automation,

General

BrandBtf-lighting

ManufacturerBTF-LIGHTING Technology Co., Limited

ModelWB5

ColorWhite

Warranty5 years

Lighting

Supported ModesMono, CCT, RGB, RGBW, RGBCCT

Dimming Levels4096 levels (0-100% brightness)

Color Support16 million colors

Power

Input VoltageDC 12-24 V

Output Current per Channel6 A per channel A

Total Max Current15 A A

Power (12V)180 W W

Power (24V)360 W W

Sensors

Operating Temperature-20°C to 60°C

ProtectionsReverse polarity, over‑heat protection

Software

Supported AppsTuya Smart, Smart Life

Safety

ProtectionsReverse polarity and over‑heat protection

Warranty

Warranty Period5 years

Dimensions & Weight

Height1.1 Inches

Width1.38 Inches

Depth4.92 Inches

Weight0.15 pounds
