Name: TP-Link TL-SG105S-M2
Brand: TP-Link
SKU: B0CMXXPTVH
Price: 49.98 USD
Availability: InStock
Rating: 4.7 (176230 reviews)

Expert Review Analysis

The TP-Link TL-SG105S-M2 is a compact 5‑port unmanaged 2.5 GbE desktop switch delivering 25 Gbps total switching capacity, fanless silent operation, and a durable metal chassis, aimed at home and small‑office multi‑gigabit networking.

✓ Best for: Home users, gamers, and small‑office setups that need a silent, plug‑and‑play 2.5 GbE switch for devices such as NAS, servers, Wi‑Fi 6 access points, or 4K streaming rigs, especially where existing Cat5e cabling is retained.✗ Not ideal for: Enterprises or power users requiring managed features like VLANs, link aggregation, or PoE, as well as larger networks that need more than five ports or higher port densities.

Pros

✓Provides 25 Gbps total switching capacity with 18.6 Mpps forwarding, enabling smooth multi‑gigabit traffic.
✓Fanless metal chassis delivers silent operation and durable build for noise‑sensitive environments.
✓Compact 4×4×1‑inch form factor with desktop or wall‑mount options fits easily into small spaces.

Price History

Current

$49.98

Average

$74.41

Lowest

$49.98

Highest

$99.99

Good Deal — 33% below average

Price trend (90d):-37.9%

Best Seller Rank History

Now#1Best#1Worst#257 +26

Lower = better sales rank

Specifications

Design

Height101 mm mm

Width126 mm mm

Depth138 mm mm

Weight472 g g

Case MaterialMetal

Features

LED IndicatorsPower, Link/Act

Flow Control802.3X

QoS802.1p/DSCP

IGMP SnoopingSupported

Transmission TypeStore-and-forward

General

BrandTP-Link

Model NameTL-SG105S-M2

Release Date2024-04-01

Warranty3 years

Network

Supported ProtocolsIEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.1p, 802.3bz, 802.3i

Performance

Switching Capacity25 Gbps Gbps

Packet Forwarding Rate18.6 Mpps Mpps

MAC Address Table Size4K

Jumbo Frame Size12 KB KB

Packet Buffer8 Mbit Mbit

Ports

RJ45 Ports5

Port Speed2.5 Gbps Gbps

Auto-Negotiation Speeds100 Mbps / 1 Gbps / 2.5 Gbps

Auto MDI/MDIXYes

Power

Power SupplyExternal 9 VDC / 0.6 A, AC 100-240V 50/60Hz

Max Power Consumption5.81 W W

Max Heat Dissipation19.754 BTU/h BTU/h

Memory

Packet Buffer8 Mbit

Dimensions & Weight

Height3.98 Inches

Width4.96 Inches

Depth5.45 Inches

Weight1.04 Pounds

Research Sources

surveillance-video.com

tp-link.com

cpcireland.farnell.com

Similar Products

TP-Link 8 Port Gigabit Ethernet Network Switch | Plug and Play | Desktop or Wall-Mount | Plastic Case Ethernet Splitter | Fanless | Traffic Optimization | Unmanaged (TL-SG1008D),Black

0.0(30,715)

Out of Stock

TP-Link

TP-Link 8 Port Gigabit Ethernet Network Switch - Ethernet Splitter | Plug & Play | Fanless | Sturdy Metal w/ Shielded Ports | Traffic Optimization | Unmanaged | Lifetime Protection (TL-SG108)

0.0(176,291)

$16.980

TP-Link

TP-Link 8 Port Gigabit Easy Smart Switch (TL-SG108E) with 8 10/100/1000 Mbps RJ45 Ports, Managed, Plug & Play, Limited Lifetime Protection, Desktop/Wall-Mount, Sturdy Metal w/ Shielded Ports, Support QoS, Vlan, IGMP and LAG

0.0(6,388)

$24.990

TP-Link

TP-Link 5-Port Gigabit Ethernet Easy Smart Switch| Plug and Play | Desktop | Sturdy Metal w/Shielded Ports | Limited Lifetime Replacement (TL-SG105E), Black…

0.0(13,064)

$19.990

TP-Link

Jadaol Cat 6 Ethernet Cable 100ft, 10Gbps Support Cat8 Cat7 Network, Flat RJ45 LAN Patch Cable, High-Speed Wired Internet Cable for Router, Modem, Switch, Gaming Consoles, PC, Streaming Devices, White

0.0(142,335)

$18.990

Jadaol

TP-Link 16 Port Gigabit Ethernet Network Switch, Desktop/ Wall-Mount, Fanless, Sturdy Metal w/ Shielded Ports, Traffic Optimization, Unmanaged (TL-SG116)

0.0(176,269)

$66.990

TP-Link

Jadaol Cat 6 Ethernet Cable 150 ft (45.72m), 10Gbps Support Cat8 Cat7 Network, Flat RJ45 LAN Patch Cable, High-Speed Internet Cable for Router, Modem, Switch, Gaming Consoles, Streaming Devices, White

0.0(142,112)

$35.990

Jadaol

UGREEN Cat 8 Ethernet Cable 3FT, Flat High Speed 40Gbps 2000Mhz Internet Cable 26AWG Braided Network Cord RJ45 Shielded Indoor LAN Cables Compatible for Gaming PC PS5 Xbox Modem Router 3FT

0.0(17,553)

$5.990

UGREEN

STEAMEMO 16 Port Gigabit PoE Switch, Smart Managed Gigabit Ethernet Switch, 16 PoE+ Ports@240W, Plug and Play, Vlan, Fanless, Desktop or Rackmount, Overload Protection w/ Port

0.0(86)

$89.990

STEAMEMO

TRENDnet 5-Port 10G Switch, TEG-S750, 5 x 10G RJ-45 Ports, 100Gbps Switching Capacity, Supports 2.5G and 5G-Base-T Connections, Ethernet Splitter, NDAA & TAA Compliant, Lifetime Protection, Black

0.0(1,018)

$229.990

TRENDnet

InHand Networks 3-Port Unmanaged Industrial Ethernet Switch, 210/100 Base-T(X), 1100Base-FX, Multi Mode Dual SC Fiber, 1.6Gbps Switching Capacity, IP30, 2KM, UL Certification

0.1(2)

$75.000

IoTInHand

NETGEAR 5-Port Multi-Gigabit Ethernet Unmanaged Network Switch (MS305) - with 5 x 1G/2.5G, Desktop or Wall Mount, and Limited 3 Year Protection

0.0(317)

$69.990

NETGEAR

TP-Link TL-SG105PP-M2 - 5 Port 2.5 Gigabit Switch, Multi-Gigabit, 4 PoE++ Ports @123W, Fanless Metal Design, Plug & Play, PoE Auto Recovery, QoS & IGMP, Free Expert Help

0.0(6,599)

$152.990

TP-Link

No Image

Zhpuostd 3 Ports Mini Industrial...

$42.280

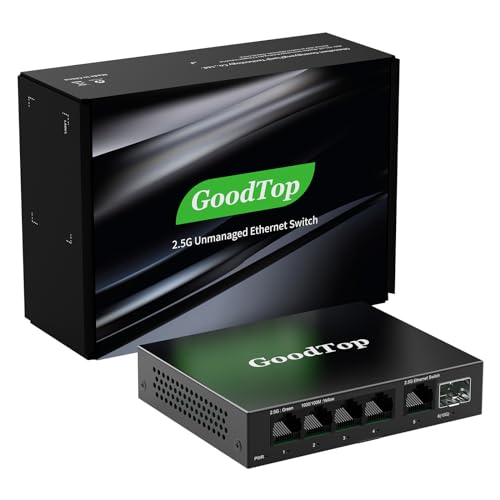

GoodTop 5 Port 2.5Gb Switch, Ethernet Switch Unmanaged 5 x 2.5G Base-T Ports and 1 x 10G SFP+, Multi-Gigabit 10/100/1000Mbps Network Switch, Plug&Play,Metal Housing,Fanless,Desktop/Wall Mount
