Kanto PMX800 Pro — Review & Specs | Pricepect | Pricepect

Home TV MountsKanto PMX800 Pro

Kanto PMX800 Pro — image 1

Kanto

Kanto PMX800 Pro

Expert Review Analysis

The Kanto PMX800 Pro Series is a heavy‑duty full‑motion TV wall mount supporting 55‑120" screens up to 200 lb, offering low‑profile retraction, extensive swivel, tilt, extension, and horizontal offset. It features solid steel construction, integrated cable management, and toolless adjustments, aimed at home‑theater and large‑display installations.

✓ Best for: Owners of 55‑120" TVs weighing over 100 lb who need flexible positioning in home theaters, above fireplaces, recessed walls, or interactive touch‑panel setups, especially when stud spacing is irregular.✗ Not ideal for: Installations on drywall without studs, narrow wall spaces where a 32.4" plate is too wide, or users seeking a simple, lightweight mount with minimal installation effort.

Pros

✓Supports extra-large TVs up to 120 inches and 200 lb weight capacity, covering a broad size and VESA range.

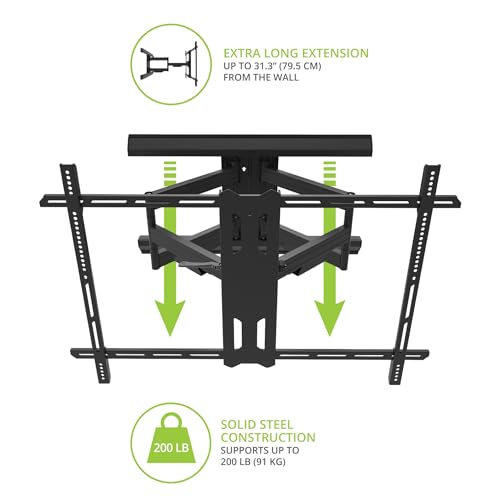

✓Provides extensive motion with ±90° swivel, up to 31.3" extension, and ±11" horizontal offset for flexible positioning.
✓

Price History

Current

$399.99

Average

$393.89

Lowest

$319.99

Highest

$399.99

Price trend (90d):0.0%

Best Seller Rank History

Now#2,089Best#623Worst#2,800 +194

Lower = better sales rank

Rating Trend

Rating4.6/ 5Reviews219+11 reviews -0.11

Specifications

Accessories

Mounting Hardware IncludedWall-mount bracket, articulating arm, 2 horizontal and 2 vertical TV brackets, TV support bracket, M6 (12mm, 20mm, 35mm) and M8 (12mm) bolts

Design

Mount Height25.0" (635 mm) mm

Mount Width37.8" (960 mm) mm

Mount Depth31.3" (795 mm) mm

Wall Plate Width32.4" (823 mm) mm

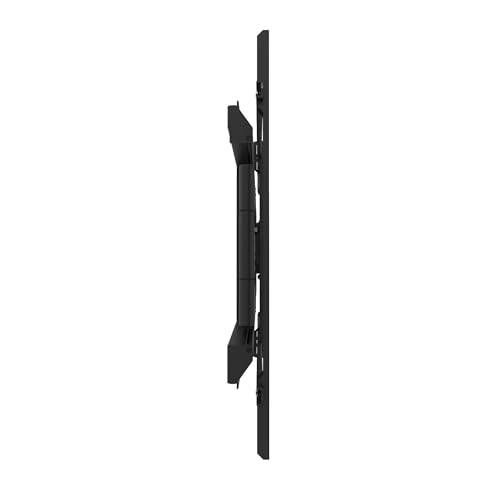

Retracted Depth2.6" (66 mm) mm

Features

Toolless TiltToolless cam lever tilt mechanism

Integrated Cable ManagementMetal cable management channels

Dual Stud InstallationRequires dual studs up to 24" spacing

Powder-Coated FinishPowder-coated finish

Aluminum Bolt CoversAluminum bolt covers conceal lag bolts

General

BrandKanto

ModelPMX800

ColorBlack

Warranty10 years

Weight Capacity200 lb (90.9 kg) g

Mount Features

Tilt Range+12° forward to -3° backward via toolless cam lever

Swivel Range±90° left or right depending on screen size

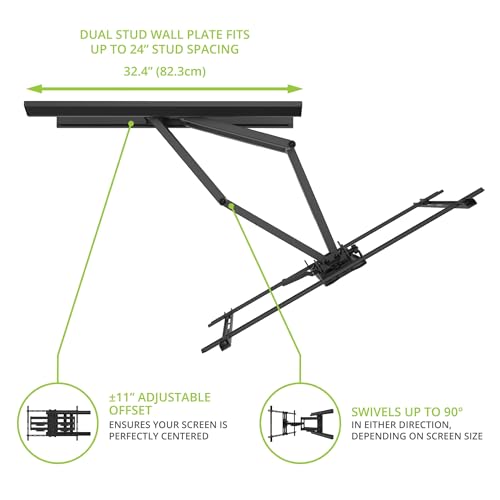

Horizontal OffsetUp to ±11" (22" total) for centering regardless of stud position

Leveling AdjustmentAdjustable horizontal leveling ±3°

Construction

MaterialsSolid steel with powder‑coated finish; aluminum covers conceal lag bolts; integrated metal cable management channels

Dimensions & Weight

Height25.0 inches

Width37.8 inches

Depth31.3 inches

Research Sources

kantomounts.com

crutchfield.com

bhphotovideo.com

kantomounts.com

business.walmart.com

shop.avispl.com

applianceandelectronics.com

Similar Products

Kanto R400 Recessed in-Wall Full Motion Articulating TV Mount for 35" - 65" TVs | 300x300 VESA No Gap Flush Install | 0.3" Profile 400x400 VESA | Swivel and Tilt Capable | Cable Management Clips

Kanto

monTEK Heavy Duty TV Wall Mount for 37-90 inch TV up to 165lbs, 4X Load Tested, Full Motion with Dual Articulating Arms, Tool-Free Tilt, Swivel & Extend, VESA 200x100 to 600x400, Fits 12“/16" Studs

monTEK Heavy Duty TV Wall Mount for 37-90 inch TV up to 165lbs, 4X Load Tested, Full Motion with Dual Articulating Arms, Tool-Free Tilt, Swivel & Extend, VESA 200x100 to 600x400, Fits 12“/16" Studs

monTEK

monTEK Heavy Duty XXL Full Motion TV Wall Mount for 60-120 inch Extra Large TVs, Holds 265 lbs, Max VESA 900x600, 27.7" Extension, Swivel & Tilt, Preassembled, Fits 12–24" Studs, LED/LCD/OLED 4K/8K

monTEK Heavy Duty XXL Full Motion TV Wall Mount for 60-120 inch Extra Large TVs, Holds 265 lbs, Max VESA 900x600, 27.7" Extension, Swivel & Tilt, Preassembled, Fits 12–24" Studs, LED/LCD/OLED 4K/8K

monTEK

Heavy Duty Fixed TV Wall Mount for 48-150 Inch Large TVs up to 330lbs & 900x600mm VESA, Low Profile Slim TV Mount Bracket, Fits 16"/18"/24"/32" Wood Studs, for Most 65+ 75+ 85 86 90 98 100 120 150 TV

HOME VISION

WHYFONE Extra Heavy Duty TV Wall Mount 43 inch Long Arm, Full Motion TV Mount Sliding for 60-120" Extra Large 85" 90" 98" 100" 110"120" Screens up to 299 lbs, Max VESA 900x600mm, 12-24" Wood Stud Wall

WHYFONE Extra Heavy Duty TV Wall Mount 43 inch Long Arm, Full Motion TV Mount Sliding for 60-120" Extra Large 85" 90" 98" 100" 110"120" Screens up to 299 lbs, Max VESA 900x600mm, 12-24" Wood Stud Wall

WHYFONE

monTEK Heavy Duty Tilting TV Wall Mount for 60–120” Large TVs up to 300 lbs, 4X Safety Tested, 10° Tilt for Glare-Free Viewing, Low Profile Slim Bracket, Max VESA 900x600, Fits 16”/18”/24” Studs

monTEK

J-Tech Digital 2x2 TV Wall Mount...

User Reviews

Please sign in to leave a review

Sort by:

No reviews yet. Be the first to review!

4.6

(214 reviews)

$399.99

Track Price on BigBangPrice

Get notified when the price drops. Track this product on BigBangPrice, our price tracking partner.

PMX800Black55" - 120" TVs | Extends 31.3” Ten Year Manufacturer's Warranty

Tool-less tilt mechanism allows quick adjustment from +12° forward to -3° backward without tools.

✓Integrated metal cable management channels and aluminum bolt covers keep installation looking clean.

✓Solid steel construction with powder‑coated finish ensures durability for heavy‑duty mounting.

Cons

✗Requires dual‑stud mounting up to 24" spacing, limiting installation on walls without studs.
✗Large 32.4" wall plate may be too wide for narrow wall spaces or tight installations.
✗Heavy‑duty build and included hardware can make installation challenging for DIY novices.
✗Limited color option (only black) may not match all décor preferences.
✗No independent user or expert reviews available, making performance validation difficult.

From Expert Reviews

Praised by Experts

✓Crutchfield highlights the ±11" horizontal offset that accommodates irregular stud spacing.
✓B&H notes the 31.3" extension length provides ample reach for recessed or fireplace mounts.
✓Professional reviewers praise the toolless tilt adjustment for fast angle changes during setup.

How It Compares

vs. Sanus VMF720/830

Advantages

✓Higher weight capacity (200 lb vs. typical 125‑165 lb) gives more safety margin for large TVs.
✓Wider VESA compatibility up to 900×600 mm accommodates more models.
✓±11" horizontal offset is rarely offered by competitors, allowing placement over uneven stud layouts.

Disadvantages

✗Larger 32.4" wall plate can be problematic on narrow walls.
✗Dual‑stud requirement may limit installation options compared to some lighter mounts.

Choose the Kanto PMX800 when you need maximum capacity and offset flexibility; choose Sanus for a slightly smaller footprint and potentially easier install on standard stud spacing.
