Rankings
Ubiquiti's NanoBeam 5AC Gen2 combines a 19 dBi antenna with airMAX ac technology to offer up to 450 Mbps over long distances in a compact, weather-resistant package. It lacks newer Wi-Fi 6 support and may struggle in heavily obstructed environments. Suited for ISPs and enterprises needing reliable point-to-point backhaul.
The TP-Link CPE710 is a rugged outdoor 5 GHz wireless bridge featuring a 23 dBi directional antenna and IP65 rating, delivering up to 867 Mbps for long-range point-to-point links. It is limited to the 5 GHz band and requires precise alignment due to its narrow beamwidth. Ideal for enterprises and ISPs needing high-performance outdoor backhaul.

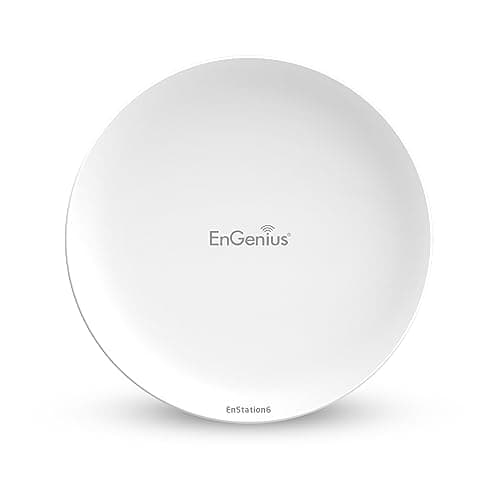

The EnGenius EnStation6 is a rugged outdoor Wi-Fi 6 bridge delivering up to 1200 Mbps and 8 km point-to-point range with a 19 dBi antenna. Its reliance on a proprietary 54 V PoE injector and single-band operation limit flexibility and standard PoE integration. Best suited for campus-wide or rural point-to-point links where high throughput and weather resistance are paramount.
The BrosTrend 5 GHz 867 Mbps WiFi Bridge offers high-speed point-to-point connectivity with a rugged IP65 enclosure and dual Gigabit ports. Its single-band operation and need for precise line-of-sight limit flexibility. Ideal for homeowners or small property owners needing a simple, budget-friendly link up to about 1 km.
The KuWFi Outdoor Wireless Bridge provides easy LED-based setup and a high-gain 12 dBi antenna for reliable 3 km point-to-point links. Its 300 Mbps ceiling and single-band design limit bandwidth-intensive uses. Ideal for rural CCTV or simple Wi-Fi extensions where cost and quick deployment matter.
The Ubiquiti NanoStation locoM2 delivers up to 150 Mbps on the 2.4 GHz band with a compact 8-dBi antenna and remote reset capability. Its single-band design and limited Ethernet speed can be drawbacks in high-traffic scenarios. Ideal for small-to-medium WISPs or rural sites needing an affordable, low-power backhaul over a few kilometres.

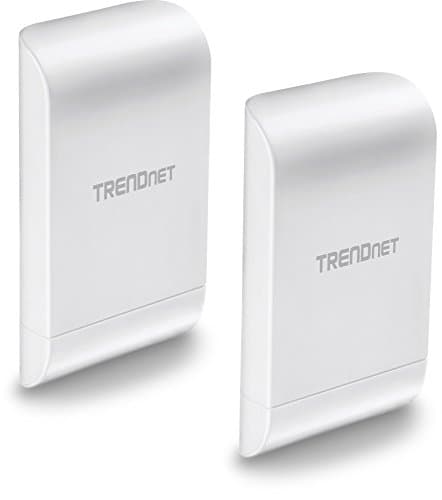

The TRENDnet TEW-740APBO2K kit offers pre-configured 2.4 GHz N300 bridges with IP56 weatherproof enclosures and included PoE injectors for easy outdoor deployment. Its 2.4 GHz limitation and passive PoE power constraints reduce suitability for high-throughput or power-intensive applications. Ideal for small businesses or hobbyists needing a simple, rugged point-to-point link.
| Attribute | | | | | | | |
|---|---|---|---|---|---|---|---|
150 Mbps | 450 Mbps | 867 Mbps | 300 Mbps | 300 Mbps | 1,200 Mbpsbest | 867 Mbps | |
1 | 2 | 1 | 3best | 1 | 2 | 2 | |
| ↓ lower better | 180 g | 907.18 g | 1,000 g | — | 454 g | 503.5 g | 99.2 gbest |
5,000 m | — | — | 3,000 m | — | 8,000 mbest | 1,000 m | |
| ↓ lower better | 6 W | 8.5 W | 7.3 W | — | 6.6 W | 12 W | 4.7 Wbest |
8.5 dBi | 19 dBi | 23 dBibest | 12 dBi | 10 dBi | 19 dBi | — | |
24 V | 24 V | — | 24 V | — | 54 Vbest | — | |
— | — | — | — | — | 90 %best | — |
Click an attribute name to sort · Green = best, red = worst (relative to this comparison)
| Attribute | | | | | | | |
|---|---|---|---|---|---|---|---|
Connectivity(2) | |||||||
Supported Wi‑Fi Standards | 802.11n | 802.11ac | 802.11ac | 802.11a/n | 802.11b/g/n | 802.11ax | 802.11ac |
Frequency Bands (GHz) | 2.4 | 5.150-5.875 | 5.15-5.85 | 5.8 | 2.4 | 5 | 5 |
Ports(2) | |||||||
Number of Ethernet Ports | 1 | 2 | 1 | 3 | 1 | 2 | 2 |
Ethernet Port Speed | 100 | 1000 | 1000 | 10/100Mbps | 10/100Mbps | Gigabit | 1000 Mbps |
Performance(3) | |||||||
Maximum Data Rate (Mbps) | 150 Mbps | 450 Mbps | 867 Mbps | 300 Mbps | 300 Mbps | 1200 Mbps | 867 Mbps |
Effective Range (m) | 5000 m | — | — | 3000 m | — | 8000 m | 1000 m |
Antenna Gain (dBi) | 8.5 dBi | 19 dBi | 23 dBi | 12 dBi | 10 dBi | 19 dBi | — |
Battery & Power(2) | |||||||
Power Consumption (W) | 6 W | 8.5 W | 7.3 W | — | 6.6 W | 12 W | 4.7 W |
Input Voltage (V) | 24 V | 24 V | 16-27 V | 24 V | 100-220 V | 54 V | — |
Build & Design(4) | |||||||
Weight (g) | 180 g | 907.18 g | 1000 g | — | 454 g | 503.5 g | 99.2 g |
Dimensions (L×W×H) (mm) | 30 x 80 x 180 mm | 96.52x241.30x226.06 mm | 207x280x366 mm | — | 60.96 x 116.84 x 193.04 mm mm | 190x190x38 mm | 132.08 x 43.18 x 71.12 mm |
Ingress Protection (IP) Rating | — | — | IP65 | IP65 | IP56 | IP55 | IP65 |
Mounting Options | Pole | Pole‑mount | Pole‑mount | — | Pole, Wall | Pole/wall | Wall, Pole |
General(3) | |||||||
Certifications | FCC, IC, CE, RoHS, NDAA Compliant | CE, FCC, IC | — | — | FCC, CE, IC, NDAA/TAA | FCC, CE, IC | — |
Operating Temperature (°C) | -30 to 75 °C | -40-80 °C | -40-70 °C | — | — | -20 to 60 °C | — |
Operating Humidity (%) | 5-95 % | 5-95 % | 5-95 % | — | — | 90 % | — |
Products in the top-left offer the best value (high score, low price).
Professional reviewers emphasize the locoM2's low-latency AirMAX TDMA protocol, carrier-class scalability, and its integrated dual-polarized antenna that delivers solid gain and isolation. They also note the device's rugged outdoor enclosure and intelligent passive PoE with remote reset as strong points, while calling out the limitation to the 2.4 GHz band and the older processor/memory as potential drawbacks for future-proofing.
Everyday users generally praise the device's easy plug-and-play installation, lightweight form factor, and low power draw, especially for remote or solar-powered sites. Recurring concerns revolve around 2.4 GHz interference in crowded areas, the lack of Gigabit Ethernet, and occasional performance limits due to the older hardware.
“truly plug and play”
“flawless performance at 400 ft”
“game changer for properties”
Choose CPE710 for maximum range; choose NanoStation for easier setup in less demanding distances.
Professional reviewers commend the NanoBeam 5AC Gen2 for its innovative all-in-one design that packs a high-gain 19 dBi antenna and airMAX ac radio into a tiny enclosure, delivering up to 450 Mbps and exceptional noise immunity in RF-dense environments. They highlight the easy alignment via a 3-axis ball joint, low 8.5 W power draw for passive PoE, and the rugged construction rated for 200 km/h winds as strong points for outdoor deployments.
Professional reviewers describe the CPE710 as a high-performance outdoor bridge that excels in noisy, long-distance scenarios. B&H Photo and CDW commend its 23 dBi antenna, 2×2 MIMO, and 867 Mbps AC throughput, while emphasizing the rugged IP65 enclosure and Pharos Control for easy centralized management.
User-generated feedback is scarce in the available sources, so direct consumer sentiment cannot be quantified. The product's marketing and specifications suggest users would appreciate its long-range capability and weather resistance, while potential concerns would revolve around the need for precise alignment and the lack of 2.4 GHz support.
Professional reviewers and editors have not published detailed analyses of the BrosTrend EAP2; product pages and YouTube overviews emphasize its plug-and-play simplicity, 1 km stable transmission, and positioning as a budget-friendly outdoor PtP solution.
Everyday users consistently praise the bridge for its effortless setup, reliable high-speed performance over several hundred feet, and robust weather-proof design, while recurring complaints focus on the single-band limitation, the need for precise line-of-sight alignment, and the lack of outdoor-rated PoE injectors.
